Labeling Machines

A practical and effective solution for small and medium-scale serial production

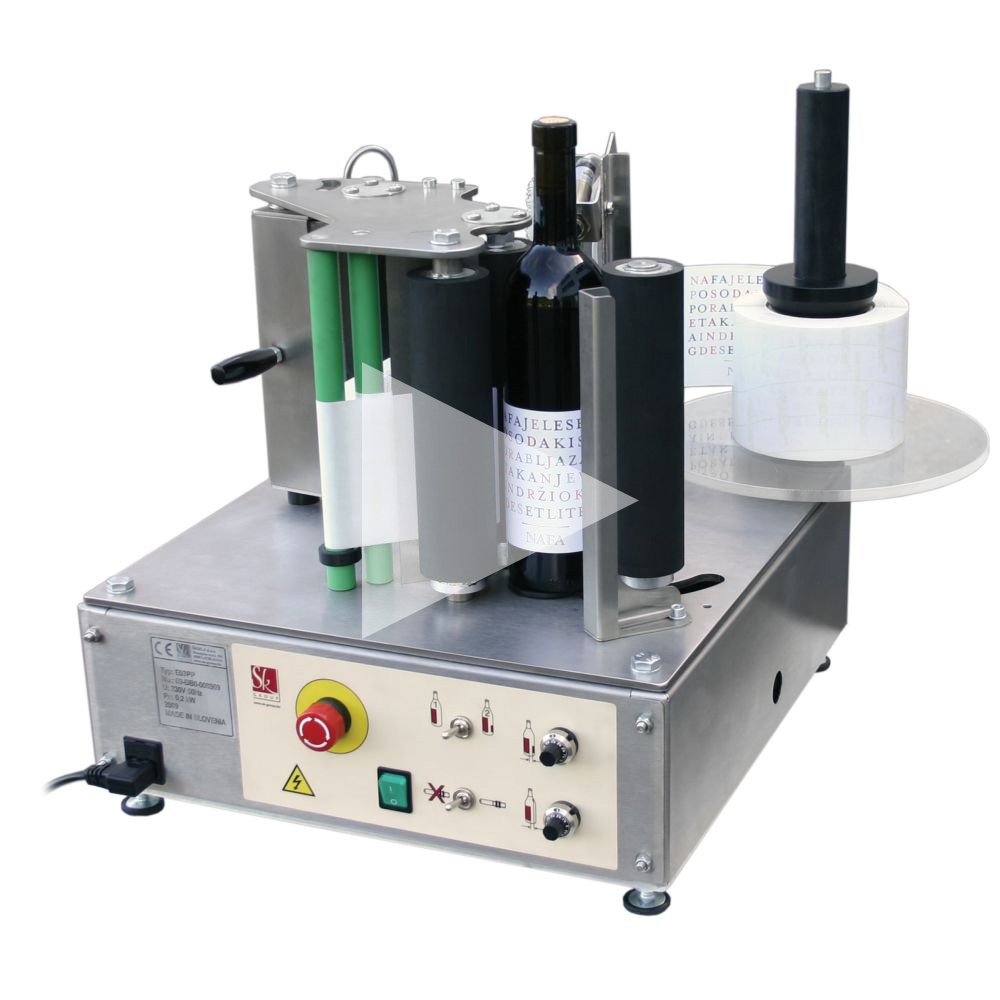

The semiautomatic labelling machine E03 is used for applying labels on bottles and other containers of similar cylindrical shape. The machine can apply one or two self-adhesive labels, which are winded on a label roll. A built-in optical sensor enables precise label positioning in the desired spot.

If requested, we can install an additional optical sensor that can detect an already existing label or emblem on the bottle and therefore enables precise positioning of any additional labels.

A labelling machine with higher rolls (230 mm) is suitable for applying labels on wine bottles.  A labelling machine with lower label rolls (180 mm) is suitable for labelling smaller bottles (beer, juice bottles, etc.).

Learn more about labelling machines



E03 180 230V 50/60HZ

  • E03 Semiautomatic Labeling Machine
  • Use: The labeling machine is used for applying labels on bottles and other containers of similar cylindrical shape. It enables the a pplication of one or two labels on the same object (front and back; from same label roll). The labeling machine's support frame is made of stainless material. Its robust design and quality materials guarantee a long service life, reliability, and easy maintenance.
  • Capacity: 500-900 bottles per hour (one label)
  • Bottle diameter: 47-100 mm
  • Roller height: 180 mm
  • Max. label height: 140 mm
  • Max. object conicity: ≤ 1°
  • Input power: 0,2 KW
  • Supply voltage: 230V 50/60Hz
  • Weight [kg]: approx. 53 kg



E03 180 230V 50/60HZ F2

  • E03 Semiautomatic Labeling Machine
  • Use: The labeling machine is used for applying labels on bottles and other containers of similar cylindrical shape. It enables the a pplication of one or two labels on the same object (front and back; from same label roll). The labeling machine's support frame is made of stainless material. Its robust design and quality materials guarantee a long service life, reliability, and easy maintenance.
  • Additional photocell: The additional F2 photoelectric sensor detects the existing label or emblem on the bottle and enables precise positioning and application of the (second) label.
  • Capacity: 500-900 bottles per hour (one label)
  • Bottle diameter: 47-100 mm
  • Roller height: 180 mm
  • Max. label height: 140 mm
  • Max. object conicity: ≤ 1°
  • Input power: 0,2 KW
  • Supply voltage: 230V 50/60Hz
  • Weight [kg]: approx. 53 kg



E03 230 230V 50/60HZ

  • E03 Semiautomatic Labeling Machine
  • Use: The labeling machine is used for applying labels on bottles and other containers of similar cylindrical shape. It enables the a pplication of one or two labels on the same object (front and back; from same label roll). The labeling machine's support frame is made of stainless material. Its robust design and quality materials guarantee a long service life, reliability, and easy maintenance.
  • Capacity: 500-900 bottles per hour (one label)
  • Bottle diameter: 55-115 mm
  • Roller height: 230 mm
  • Max. label height: 190 mm
  • Max. object conicity: ≤ 1°
  • Input power: 0,2 KW
  • Supply voltage: 230V 50/60Hz
  • Weight [kg]: approx. 55 kg



E03 230 230V 50/60HZ F2

  • E03 Semiautomatic Labeling Machine
  • Use: The labeling machine is used for applying labels on bottles and other containers of similar cylindrical shape. It enables the a pplication of one or two labels on the same object (front and back; from same label roll). The labeling machine's support frame is made of stainless material. Its robust design and quality materials guarantee a long service life, reliability, and easy maintenance.
  • Additional photocell: The additional F2 photoelectric sensor detects the existing label or emblem on the bottle and enables precise positioning and application of the (second) label.
  • Capacity: 500-900 bottles per hour (one label)
  • Bottle diameter: 55-115 mm
  • Roller height: 230 mm
  • Max. label height: 190 mm
  • Max. object conicity: ≤ 1°
  • Input power: 0,2 KW
  • Supply voltage: 230V 50/60Hz
  • Weight [kg]: approx. 55 kg



PHOTOCELL INSTALLATION KIT FOR E03

  • ADDITIONAL PHOTOCELL INSTALLATION KIT FOR E03: Photocell holder Rubber grommet sleeve Switch Button for potentiometer Pote ntiometer Photocell Screws
